直流电机EC 20 FLAT，麦克森直流电机EC 20 FLAT，MAXON直流电机EC 20 FLAT，麦克森MAXON直流电机EC 20 FLAT
产品规格型号
-
AC/DC:
直流
-
类型:
EC
-
电压:
24V, 12V, 6V, 9 V
-
其他特性:
超平面, 大功率, 永磁
-
扭矩:
蕞少: 0.0032 Nm (0.0024 ft.lb)
蕞多: 0.0086 Nm (0.0063 ft.lb)
-
输出功率:
3 W, 2 W, 5 W (0.004 hp)
-
旋转速度:
蕞少: 3,000 rpm (18,849.56 rad.min-1)
蕞多: 9,710 rpm (61,009.73 rad.min-1)
-
直径:
20 mm
产品介绍

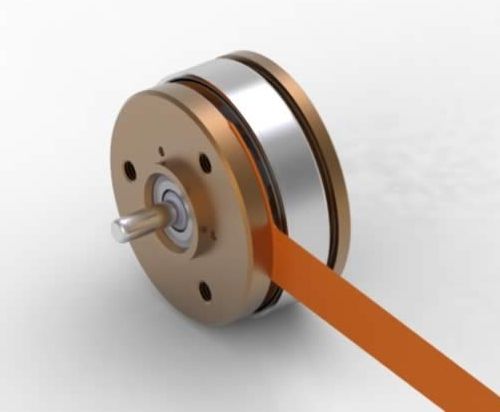

The 455019 from Maxon Motor is an electronically commutated, brushless ec motor that offers a variety of speed range with high power, and torque characteristics as well as long service life. The torque gradient can reach up to 58300 rpm/mNm with a torque constant of 1.21 mNm/A. It also has a rotor inertia of 0.00703 gcm².
